Crown 5" - 1

Crown 5" - 1

Crown 5" - 1

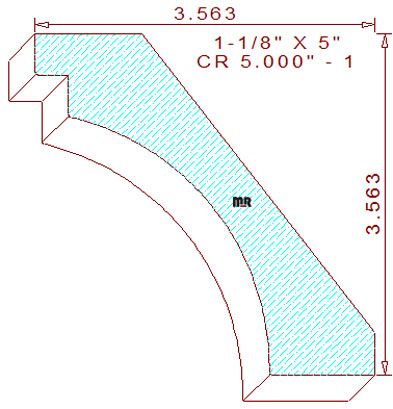

This concave 5" - 1 crown mould measures 5.000" wide by 1.125" thickness. The profile is comprised of a 2-11/16" radius cavetto/cove positioned in the center that is flanked by a notched fillet on top and a 1-1/8" wide horizontal fillet on the bottom. The spring angles are fixed at thirty-eight and fifty-two degree which sets the installed height and projection at 3-9/16" tall and wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.876
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.270
Top Cutter Head
Width: 5.000
Depth of Cut: 0.919
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$161.75
$353.50
Not Needed
Total:
$686.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$171.25
$376.50
Not Needed
Total:
$728.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$180.75
$399.50
Not Needed
Total:
$770.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
