Crown 5" - 10
Crown 5" - 10

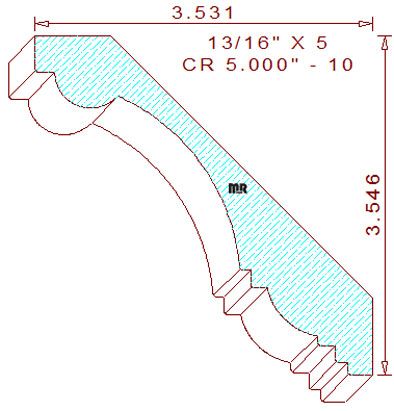

This elegant 5" - 10 crown mould measures 5.000" wide by .812" thick. The profile is comprised of a squared fillet with an attached half round bead on top, the center retains a large cove with an attached ovolo that is flanked by a series of stepped fillets. When installed the height becomes 3-35/64" tall and a projection of 3-17/32" wide with the spring angles fixed at forty-five degree. Two design points are positioned on the same level plane for superior hold-down conditions while milling the pattern.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.562
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.571
Top Cutter Head
Width: 5.000
Depth of Cut: 0.563
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$118.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
