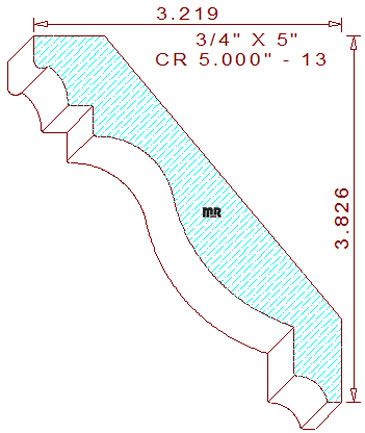

This Lovely Crown Moulding 5" - 13 measures 5.000" wide by .750" thickness, the profile is comprised of a cyma recta positioned in the center of the design flanked by a notched fillet, cove and half round bead on top plus a vertical fillet, cove and small horizontal fillet at the bottom. The spring angles are fixed at forty and fifty degree which sets the installed height at 3-53/64" tall with a projection of 3-7/32" wide. Four high points in the design are positioned on the same level plane creating superior hold down conditions while milling the pattern on an industrial style moulder.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
