Crown 5" - 15

Crown 5" - 15

Crown 5" - 15

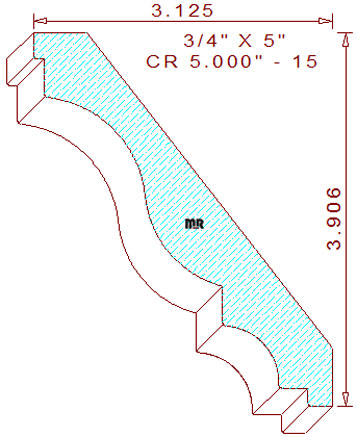

This stylish crown mould measures 5.000" wide by .750" thick. The profile comprises a cyma recta attached to two vertical stepped fillets in the upper portion, with a cavetto connected to a vertical and notched fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, setting the installed height at 3-29/32" tall with a 3-1/8" wide projection.+

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.438
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.376
Top Cutter Head
Width: 5.000
Depth of Cut: 0.473
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$330.50
Not Needed
Total:
$654.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$353.50
Not Needed
Total:
$696.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$376.50
Not Needed
Total:
$738.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
