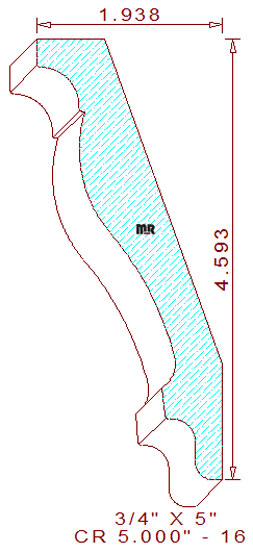

This tall 5" - 16 crown mould measures 5.000" wide by .750" thickness. The profile comprises an elongated cyma reversa attached to a cavetto flanked by fillets at the top, with a vertical fillet connected to a cyma recta at the bottom of the pattern. The spring angles are fixed at twenty and seventy degrees which sets the installed height at 4-19/32" tall with a projection of 1-15/16" wide. The Cad-generated Dxf file contains three skillfully drafted template designs for creating profile cutters for this pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.655
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.413
Top Cutter Head
Width: 5.000
Depth of Cut: 0.431
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$134.00
$342.00
Not Needed
Total:
$617.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$148.00
$141.00
$365.00
Not Needed
Total:
$654.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$158.50
$151.50
$399.50
Not Needed
Total:
$709.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
