Crown Moulding 5" - 17

Crown Moulding 5" - 17

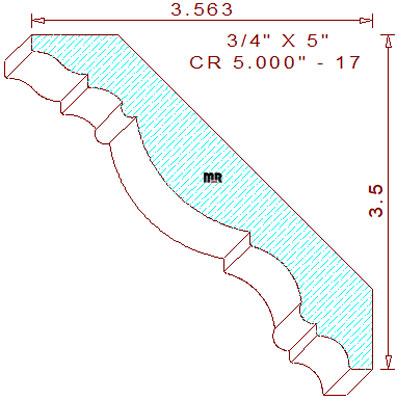

This visually appealing crown moulding 5" - 17 measures 5.000" wide by .750" thickness, allowing the detail to be machined sprung (laying horizontally flat) from four quarter lumber. The beautifully ornate profile is guaranteed to embellish the architectural decor of any stylish home or office, it consists of many decorative geometrical shapes such as coves, beads, fillets, semicircular arc and ogee. The spring angles are fixed at forty-five degree, these dedicated back cuts set the installed height at 3-1/2" tall with a projection of 3-9/16" wide.

Become professionally efficient while searching over 15,000 mouldings in our state-of-the-art molding catalog. Watch the short video on the first page to find design ideas for your next woodworking project, we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.000" / Depth of Cut = .278" (top knives.)

Thickness = .750" / Depth of Cut = .640" (right blades) & .590" (left cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
