Crown 5" - 2
Crown 5" - 2

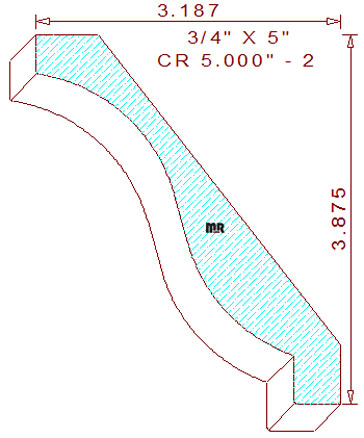

This 5" - 2 cyma recta crown mould measures 5.000" wide by .750" thickness. The profile is comprised of cyma recta attached to a vertical fillet on top and a ½" wide by ½" tall stepped fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degree which sets the installed height at 3-7/8" tall with a projection of 3-3/16" wide. Do you desire this template and a set of moulding knives quickly? We generally can have these knives ground and shipped within twenty-four hours.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.509
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.381
Top Cutter Head
Width: 5.000
Depth of Cut: 0.481
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$342.00
Not Needed
Total:
$675.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$365.00
Not Needed
Total:
$717.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$399.50
Not Needed
Total:
$780.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
