Crown 5" - 20

Crown 5" - 20

Crown 5" - 20

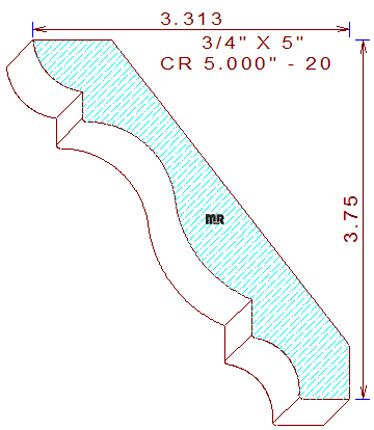

This decorative 5" - 20 crown mould measures 5.000" wide by .750" thickness. The profile comprises a quarter-round bead with an attached vertical fillet on top connected to a cyma recta in the center and a cove on the bottom with two attached fillets. When installed, the height becomes 3-3/4" with a projection of 3-5/16" wide with the spring angles set at thirty-eight and fifty-two degrees. Three points of the design are positioned on the same level plane to assist in holding down the wood while milling the pattern on an industrial moulder.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.651
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.348
Top Cutter Head
Width: 5.000
Depth of Cut: 0.472
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$161.75
$330.50
Not Needed
Total:
$663.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$171.25
$353.50
Not Needed
Total:
$705.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$180.75
$376.50
Not Needed
Total:
$747.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
