Crown Moulding 5" - 22

Crown Moulding 5" - 22

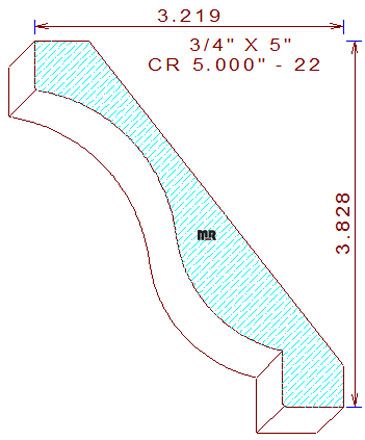

This Crown Moulding 5" - 22 measures 5.000" wide by .750" thickness, the profile consist of a 17/32" vertical fillet on top attached to a cyma recta in the center with a squared fillet detail at the bottom of the pattern. When installed the height becomes 3-53/64" tall with a projection of 3-7/32" wide,with the spring angles set at thirty-eight and fifty-two degrees. Two points of the design are intentionally located on the same level plane, this design technique will create superior hold conditions while milling the pattern on a industrial moulder.

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
