Crown 5" - 23
Crown 5" - 23

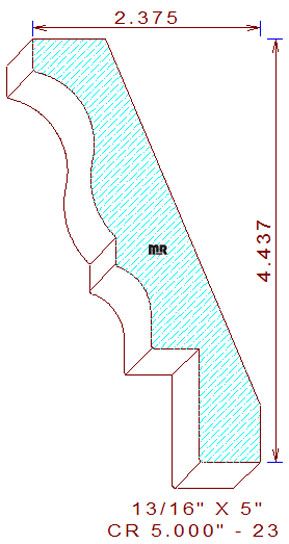

This fancy 5" - 23 crown mould measures 5" wide by 13/16" thick; the profile consists of the following geometrical elements: vertical and horizontal fillets, a cyma recta, and cavetto with a notched area on the bottom portion for a piece of rope or dentil mould. When installed, the height becomes 4-7/16" tall with a projection of 2-3/8" wide with the spring angles fixed at twenty-three and sixty-seven degrees. All the points of this crown are located on the same plane.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.693
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.235
Top Cutter Head
Width: 5.000
Depth of Cut: 0.648
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$365.00
Not Needed
Total:
$707.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$388.00
Not Needed
Total:
$749.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$422.50
Not Needed
Total:
$812.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
