Crown 5" - 3
Crown 5" - 3

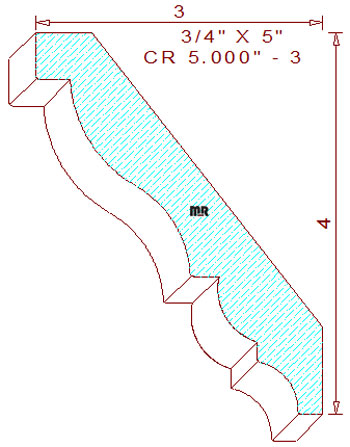

This custom 5" - 3 crown mould measures 5.000" wide by .750" thickness. The profile is comprised of a cyma reversa attached to a ½" tall by 3/8" wide stepped fillet on top with an ovolo and cavetto connected to a horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, setting the installed height at 4" tall with a projection of 3" wide. Moulding profiles from several different architectural eras, we have thousands of compelling designs to match your creative style.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.462
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.562
Top Cutter Head
Width: 5.000
Depth of Cut: 0.375
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
