Crown 5" - 5
Crown 5" - 5

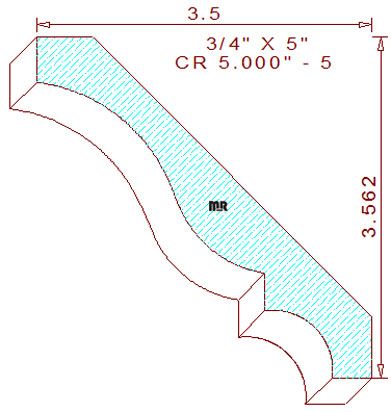

This ordinary 5" - 5 medium-sized crown mould measures 5.000" wide by .750" thickness. The profile comprises a cyma recta in the upper portion flanked by a vertical fillet, while the lower portion retains a cavetto with a horizontal fillet. When installed the height becomes 3-9/16" tall with a projection of 3-1/2" wide, the spring angles are fixed at forty-five degree, all three of the design points are positioned on the same level plane to create excellent hold down conditions during the milling process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.436
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.474
Top Cutter Head
Width: 5.000
Depth of Cut: 0.376
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$342.00
Not Needed
Total:
$632.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$365.00
Not Needed
Total:
$674.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$399.50
Not Needed
Total:
$737.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
