Crown 5-1/16"
Crown 5-1/16"

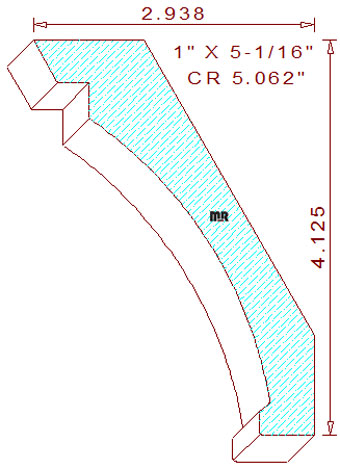

This modern 5-1/16" crown mould measures 5.062" wide by 1.000" thickness. The contemporary profile is comprised of a 5" radius cavetto in the center flanked by a notched and beveled fillet on top with a squared fillet at the bottom of the pattern. The spring angles are fixed at thirty and sixty degrees, setting the installed height at 4-1/8" tall with a 2-15/16" wide projection.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 1.000
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.519
Top Cutter Head
Width: 5.063
Depth of Cut: 0.574
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
