Crown Moulding 5-1/16" - 1

Crown Moulding 5-1/16" - 1

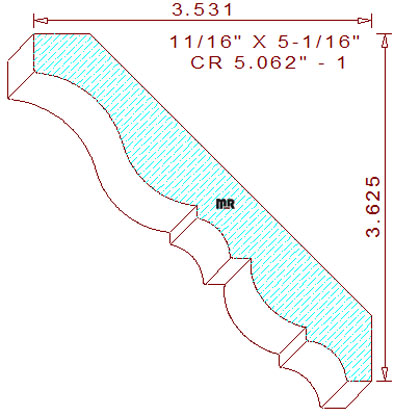

This Beautiful Crown Moulding 5-1/16" - 1 measures 5.062" wide by .687" thickness, with a depth of cut of .366" for the top set of moulding cutters. The profile is comprised of a 13/32" tall vertical fillet, attached to a cyma recta, joined to a 13/32" radius cavetto, flanked by a vertical and horizontal fillet, the lower portion of the detail consists of a two-tangent radius arc, and a 7/16" radius cove, which are also flanked by a vertical and horizontal fillet at the bottom of the pattern. The spring angles are set at forty-five degree, these bevels set the installed height at 3-5/8" tall with a projection of 3-17/32" wide.

Please read our commentary Axial Constant Position for Crown Moulding Bevels, this article will help you dial this profile in axially on the first try when milling this detail on an industrial style moulder provided the moulder is axially calibrated correctly.
