Crown 5-7/32" - 2
Crown 5-7/32" - 2

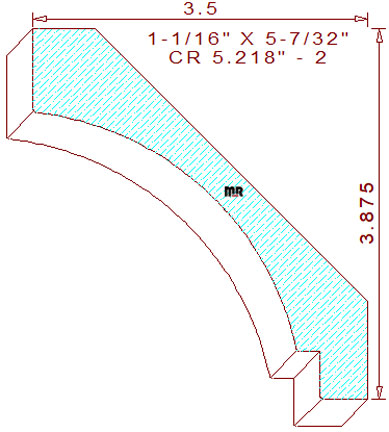

This beautifully curved inward 5-7/32" - 2 crown mould measures 5.215" wide by 1.062" thickness, permitting the pattern to be machined sprung (laying horizontally flat) out of five-quarter lumber. The terminating concave profile is composed of a 7/8" tall vertical fillet on the top left, attached to a 3-5/32" cove in the center, joined to a 1/4" wide by 1/2" tall perpendicular notch with a 1/2" horizontal line segment on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 3-7/8" tall with a projection of 3-1/2" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.460
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.725
Top Cutter Head
Width: 5.250
Depth of Cut: 0.677
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$133.00
(Template not needed)
$379.00
Not Needed
Total:
$678.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$142.50
(Template not needed)
$403.00
Not Needed
Total:
$721.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$156.75
(Template not needed)
$439.00
Not Needed
Total:
$786.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
