Crown 5-7/32" - 6
Crown 5-7/32" - 6

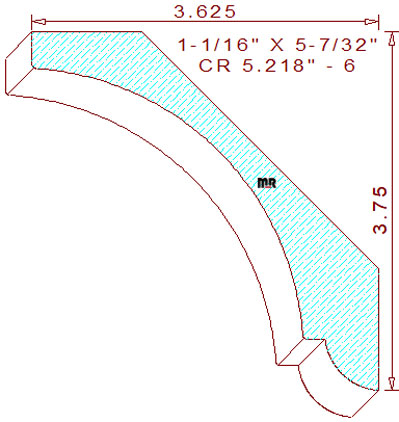

This lovely incurvate 5-7/32" - 6 crown mould measures 5.215" wide by 1.062" thickness, enabling the pattern to be milled sprung (laying horizontally flat) out of five-quarter lumber. The simplistic terminating profile is composed of a 3/8" tall vertical line segment on the top left, attached to a three-inch radius cavetto in the center, joined to a 15/64" wide flat line with a 39/64" quarter circle on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 3-3/4" tall with a projection of 3-1/2" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.810
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.899
Top Cutter Head
Width: 5.250
Depth of Cut: 0.750
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$379.00
Not Needed
Total:
$688.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$403.00
Not Needed
Total:
$731.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$439.00
Not Needed
Total:
$795.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
