Crown 5-1/4" - 3
Crown 5-1/4" - 3

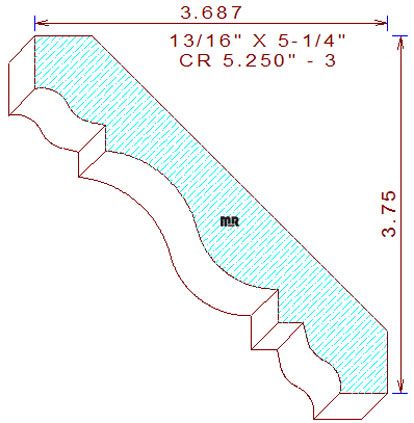

This 5-1/4" - 3 cyma recta crown mould measures 5.250" wide by .812" thickness. The profile consists of cyma recta on the top with a cyma reversa at the bottom that are connected by fillets and cyma recta in the middle. When installed the height becomes 3-3/4" tall with a projection of 3-11/16" wide with the spring angles fixed at forty-five degree, two points of the design were intentionally positioned on the same level plane to enhance hold down conditions during the milling process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.481
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.443
Top Cutter Head
Width: 5.250
Depth of Cut: 0.433
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$355.00
Not Needed
Total:
$645.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$379.00
Not Needed
Total:
$688.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$415.00
Not Needed
Total:
$752.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
