Crown 5-1/4" - 5
Crown 5-1/4" - 5

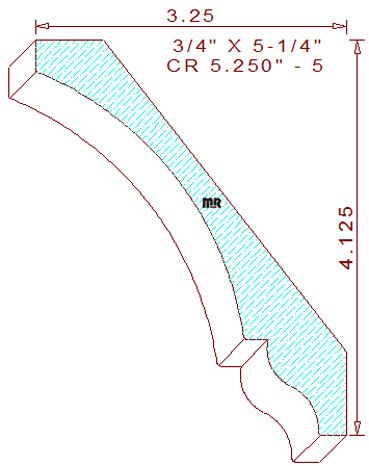

This 5-1/4" - 5 crown mould measures 5.250" wide by .750" thickness. The profile comprises a 3.521" radius cove in the center flanked by a vertical and horizontal fillet, a cyma reversa (ogee) and horizontal fillet positioned at the bottom of the pattern. When installed, the height becomes 4-1/8" tall with a projection of 3-1/4" wide, the fixed spring angles are thirty-eight and fifty-two degrees, and three points of the profile are positioned on the same level plane to assure superior hold-down conditions while milling.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.559
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.577
Top Cutter Head
Width: 5.250
Depth of Cut: 0.469
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$355.00
Not Needed
Total:
$688.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$379.00
Not Needed
Total:
$731.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$415.00
Not Needed
Total:
$795.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
