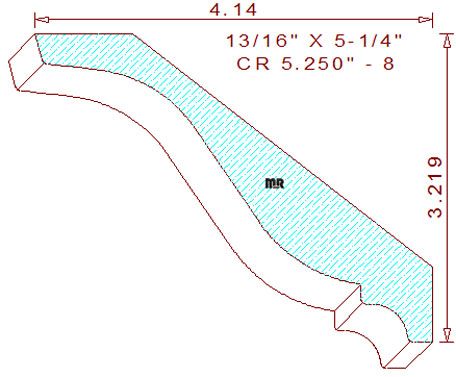

This Crown Moulding 5-1/4" - 8 measures 5.250" wide by .812" thickness, the design is composed of a classic french curve (cyma recta) flanked by two vertical fillets that are connected to a cove and horizontal fillet at the bottom of the detail, when installed the height becomes 3-7/32" tall with a projection of 4-9/64" wide, the spring angles are fixed at thirty-eight and fifty-two degree with two even hold down points that will assist the moulder operator while milling the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
