Crown 5-5/16"
Crown 5-5/16"

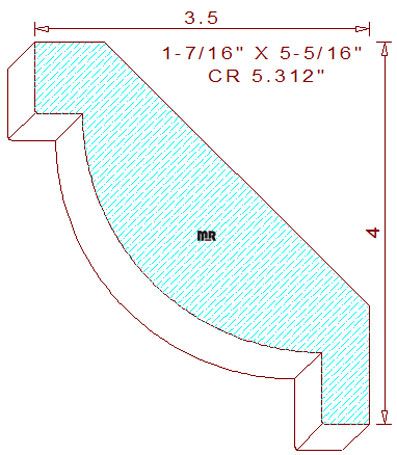

This 5-5/16" ovolo crown mould measures 5.312" wide by 1.437" thick. The design is comprised of a 2-1/2" radius arc in the center, with a 1/2" wide by 3/4" tall squared fillet on top and bottom. The installed height equals 4" tall with a projection of 3-1/2" wide. The spring angles are fixed at 45 degrees, and two points of the design are positioned on the same plane, creating excellent hold-down conditions while milling the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.528
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.882
Top Cutter Head
Width: 5.312
Depth of Cut: 1.002
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$133.00
(Template not needed)
$382.47
Not Needed
Total:
$681.97
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$142.50
(Template not needed)
$406.72
Not Needed
Total:
$725.22
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$156.75
(Template not needed)
$443.09
Not Needed
Total:
$790.09
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
