Crown 5-5/16" - 13
Crown 5-5/16" - 13

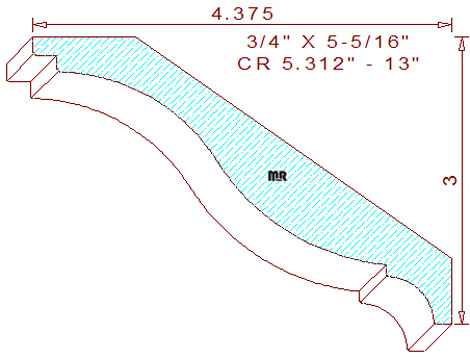

This custom 5-5/16" - 13 crown mould measures 5.312" wide by .750" thickness. The innovative design is comprised of a 3/16" tall, by 1/4" wide notched fillet in the upper portion, connected to elongated cyma recta in the center, attached to a small vertical fillet, 1/2" radius cavetto, and a 3/16" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty-five and fifty-five degree, these specific bevels set the installed height at 3" tall, with a projection of 4-3/8" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.560
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.612
Top Cutter Head
Width: 5.312
Depth of Cut: 0.336
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$358.22
Not Needed
Total:
$691.22
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$382.47
Not Needed
Total:
$734.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$418.84
Not Needed
Total:
$799.34
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
