Crown 5-5/16" - 14
Crown 5-5/16" - 14

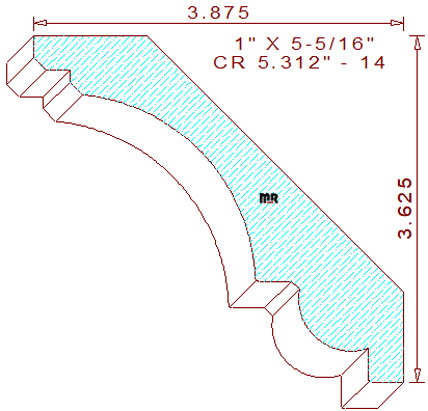

This fancy 5-5/16" - 14 crown mould measures 5.303" width by 1.000" thickness, demanding a 5-7/16" wide blank of five-quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. The elegant terminating pattern comprises a 7/32" vertical line connected to two 3/16" broad splay face beveled edges divided by a 1/4" wide by 1/8" tall perpendicular notch on the top left. The center retains a two-inch radius concave semicircle with a 3/8" flat line underneath, attached to a 1/8" sunk fillet merged with a 35/64" half-round and a 3/8" by 3/8" squared line on the bottom right corner of the pattern. The spring angles are at forty-five degrees; the dedicated back bevels keep the face sides of the pattern parallel to the wall and ceiling. These specific angle positions lock in the installed height at 3-5/8" tall with a 3-7/8" projection across the top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.840
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.663
Top Cutter Head
Width: 5.312
Depth of Cut: 0.544
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$358.22
Not Needed
Total:
$667.22
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$382.47
Not Needed
Total:
$710.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$418.84
Not Needed
Total:
$775.34
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
