Crown 5-5/16" - 2
Crown 5-5/16" - 2

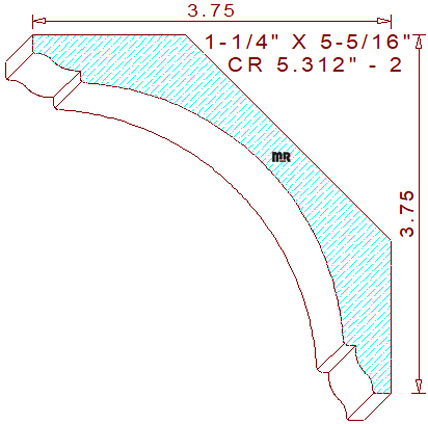

This 5-5/16" - 2 crown/cove mould measures 5.312" wide by 1.250" thickness. The symmetrical profile is composed of a 2-57/64" radius cavetto, flanked by 1/8" vertical and horizontal lines with a two tangent radius ogee and a 3/16" tall and wide lines at the top and bottom of the design. The spring angles are fixed at
forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 3-57/64" tall and wide. We have a larger version of this design for your review and consideration,
crown 6.250" - 7.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 1.132
Left Cutter Head
Thickness: 1.625
Depth of Cut: 1.132
Top Cutter Head
Width: 5.312
Depth of Cut: 0.875
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$147.25
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$156.75
(Template not needed)
