Crown Moulding 5-5/16" - 5

Crown Moulding 5-5/16" - 5

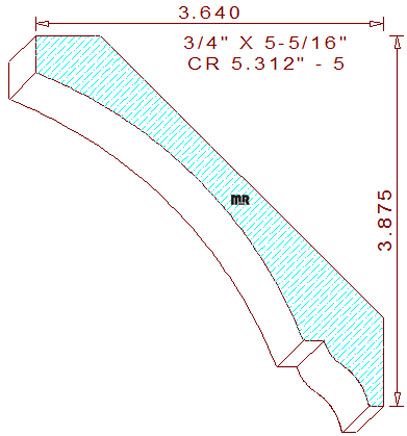

This Crown Moulding 5-5/16" - 5 measures 5.312" wide by .750" thickness, the profile is comprised of a 4-15/16" radius cove with a 13/32" tall vertical fillet on top and a ogee detail at the bottom. When installed the height becomes 3-7/8" tall with a projection of 3-41/64" wide, the spring angles are set at forty five degrees with three even points of the design positioned on the same level plane creating awesome hold down conditions while milling the pattern.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
