Crown 5-3/8" - 1
Crown 5-3/8" - 1

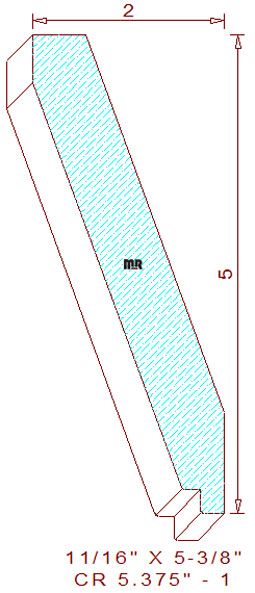

This shaker-style 5-3/8" - 1 crown mould measures 5.383" wide by .687" thickness. The profile is comprised of a 1/2" tall vertical fillet on top, 1/4" wide horizontal fillet on the bottom with an attached 1/4" tall by 3/16" wide notched fillet connected by a straight line. The spring angles are fixed at roughly twenty and seventy degrees which set the installed height at 5" tall with a projection of 2" wide. We have a larger version of this particular crown for your review and consideration, crown 7.500" - 4.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.250
Depth of Cut: 0.514
Left Cutter Head
Thickness: 1.250
Depth of Cut: 0.363
Top Cutter Head
Width: 5.375
Depth of Cut: 0.449
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$147.00
$147.00
$361.50
Not Needed
Total:
$655.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$155.00
$155.00
$386.00
Not Needed
Total:
$696.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$167.00
$167.00
$422.75
Not Needed
Total:
$756.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
