Crown 5-7/16" - 5
Crown 5-7/16" - 5

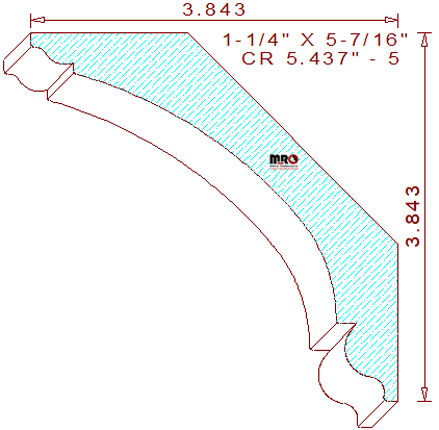

This large 5-7/16" - 5 concave crown mould measures 5.437" width by 1.250" thickness, necessitating a 5-11/16" wide blank of six-quarter lumber for milling on an industrial moulder. The asymmetrical profile comprises a small ogee flanked by vertical fillets on the top left. The lower vertical line connects to a two-tangent radius elliptical-shaped cavetto with a larger ogee flanked by horizontal fillets in the design's lower right corner. The spring angles are at forty-five degrees; the dedicated back bevels keep the face sides of the pattern parallel to the wall and ceiling. These specific angle positions lock in the installed height at 3-27/32" tall with a 3-27/32" projection across the top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 1.160
Left Cutter Head
Thickness: 1.625
Depth of Cut: 1.160
Top Cutter Head
Width: 5.437
Depth of Cut: 0.726
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$389.47
Not Needed
Total:
$717.47
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$195.00
$152.00
(Template not needed)
$414.22
Not Needed
Total:
$761.22
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$209.25
$166.25
(Template not needed)
$451.34
Not Needed
Total:
$826.84
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
