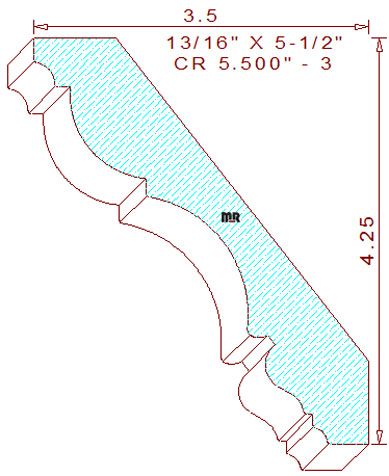

This Crown Moulding 5-1/2" - 3 measures 5.500" wide by .812" thickness, the ornate detail is comprised of a cavetto in the center flanked by a ovolo and cove in the upper portion, the lower section consist of a cyma reversa flanked by a sunken fillet above and a notched fillet with an attached cavetto on the bottom. With the spring angles fixed at thirty-eight and fifty-two degrees the installed height becomes 4-1/4" tall with a projection of 3-1/2" wide. Using these spring angles also enabled the points of the design to be positioned on the same level plane, this will help in holding down the moulding during the milling process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
