Crown 5-1/2" - 32
Crown 5-1/2" - 32

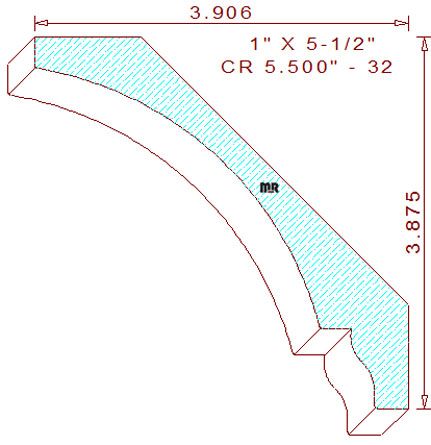

This cove style 5-1/2" - 32 crown mould measures 5.500" wide by 1.000" thickness. The profile comprises a large cavetto in the center flanked by vertical and horizontal fillets that transition into a cyma reversa at the bottom. The spring angles are fixed at forty-five degrees, which sets the installed height 3-7/8" tall and a projection of 3-29/32" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.786
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.766
Top Cutter Head
Width: 5.500
Depth of Cut: 0.687
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$393.00
Not Needed
Total:
$702.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$418.00
Not Needed
Total:
$746.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$455.50
Not Needed
Total:
$812.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
