Crown 5-1/2" - 40
Crown 5-1/2" - 40

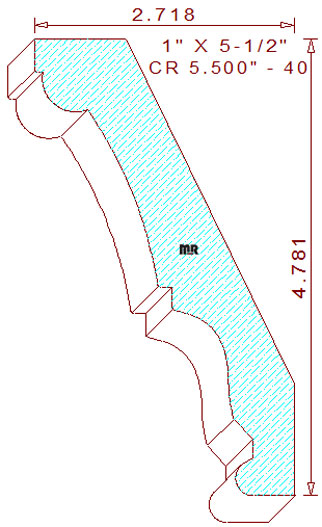

This decorative 5-1/2" - 40 crown mould measures 5.488" wide by 1.000" thickness. The stylish profile is comprised of many ornate geometrical shapes throughout the pattern. The spring angles are fixed at twenty-six and sixty-four degrees; these specific bevels set the installed height at 4-25/32" tall, with a projection of 2-23/32" wide. Search our bevels category by degree for a set of back bevel cutters appropriate for this creative crown design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.859
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.512
Top Cutter Head
Width: 5.500
Depth of Cut: 0.593
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$368.00
Not Needed
Total:
$710.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$393.00
Not Needed
Total:
$754.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$430.50
Not Needed
Total:
$820.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
