Crown 5-1/2" - 45
Crown 5-1/2" - 45

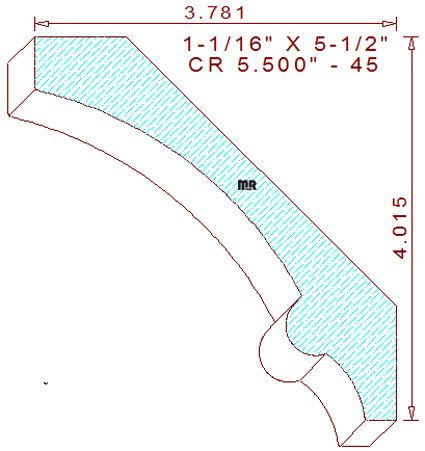

This cove style 5-1/2" - 45 crown mould measures 5-1/2" wide by 1.062" thickness. The profile has a large cove section with a small half-round bead and another shallow cove on the bottom. With the spring angles fixed at forty-five degrees, the installed height becomes 4-1/64" tall with a projection of 3-25/32" wide. Two points of the design have been purposely placed on the same level plane to create superior hold-down conditions during the milling process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.678
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.843
Top Cutter Head
Width: 5.500
Depth of Cut: 0.625
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$368.00
Not Needed
Total:
$677.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$393.00
Not Needed
Total:
$721.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$430.50
Not Needed
Total:
$787.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
