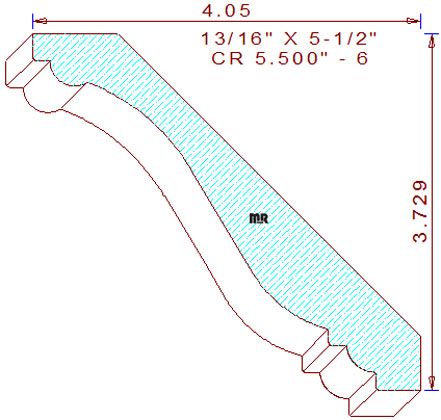

This Decorative Crown Moulding 5-1/2" - 6 measures 5.500" wide by .812" thickness, the design consist of a ovolo positioned at the bottom flanked by two fillets, one horizontal the other vertical with a cyma recta in the center and a half round bead at the top with an attached fillet. When installed the height becomes just under 3-3/4" tall with a projection of just under 4-1/16" wide with the spring angles fixed at forty-five degree. Two points of the design are purposely located on the same plane to assist the moulder operator in holding down the pattern while milling.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
