Crown 5-9/16" - 2
Crown 5-9/16" - 2

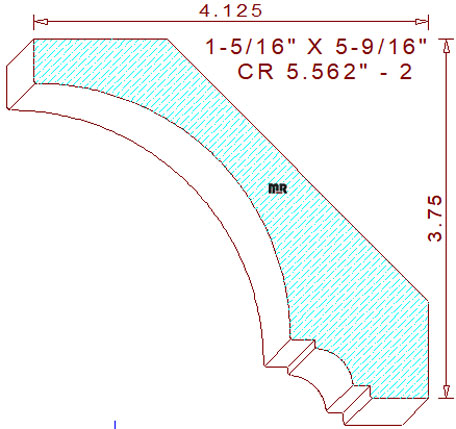

This concave 5-9/16" - 2 crown mould measures 5.562" wide by 1.312" thickness. The double cove profile is comprised of 2-41/64" radius cove with a 15/32" tall vertical fillet on top, connected to a smaller 13/32" radius cavetto flanked by horizontal and vertical lines, joined to a 5/8" wide horizontal fillet at the bottom of the pattern, The spring angles are fixed at
forty-five-degrees, these specific back bevels set the installed height at 3-3/4" tall with a projection of 4-1/8" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 1.002
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.737
Top Cutter Head
Width: 5.562
Depth of Cut: 0.783
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$128.25
(Template not needed)
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.75
(Template not needed)
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$147.25
(Template not needed)
