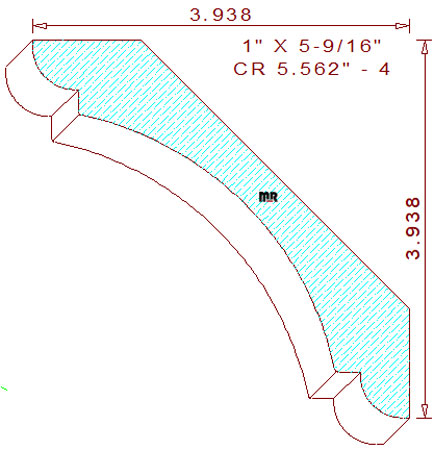

This Crown/Cove Moulding 5-9/16" - 4 measures 5.562" wide by 1.000" thickness, the symmetrical profile consist of a quarter round bead with an attached fillet on both the top and the bottom areas with the center composed of a 3-7/16" radius cavetto. When installed the height and projection are identical at 3-15/16" tall and wide with the spring angles fixed at forty-five degrees. Two points of the design are located on the same level plane to aid in holding down the pattern during the milling process, the beads are recessed by .020" to eliminate any possibility of burnish marks from occurring from the pressure shoe element located on the moulder machinery.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
