Crown Moulding 5-9/16" - 5

Crown Moulding 5-9/16" - 5

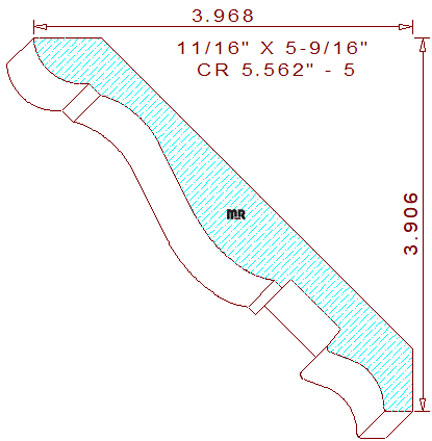

This Intricate Crown Moulding 5-9/16" - 5 measures 5.562" wide by .687" thickness with a .502" depth of cut on the right vertical cutters, .462" depth of cut on the left vertical blades, and a .381" depth of cut on the top horizontal set of moulding knives.

The innovative profile is comprised of a 33/64" radius quarter round circle on top, connected to a 11/64" tall beveled fillet that transitions into a cyma recta in the center, attached to 3/4" wide dado for inserting a piece of rope moulding, with a 33/64" radius cove joined to a 5/16" wide horizontal fillet on the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 3-29/32" tall with a projection of 3-31/32" wide.

Architects, interior designers, lumber mills, and moulding manufacturers have been utilizing our vast variety of creative moulding designs for years, we trust you will find that special moulding profile to enhance the architectural style of your home. If you have any questions or concerns about knife grinding procedures for any of our moulding designs, please contact us, we would be honored to assist you.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
