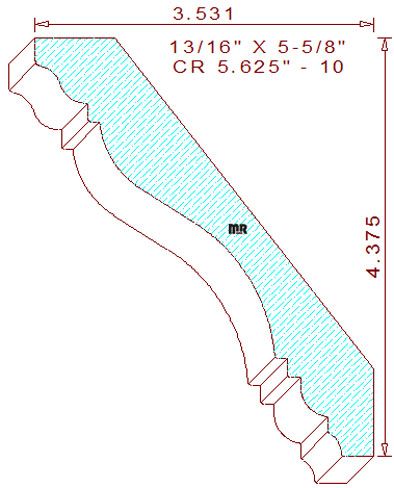

This Lovely Crown Moulding 5-5/8" - 10 measures 5.625" wide by .813" thickness, the profile is comprised of a large cyma reversa in the center with a stepped fillet and cyma recta on top, the bottom of the pattern consist of a notched fillet connected to an ovolo with a small cavetto and horizontal fillet. The spring angles are fixed at thirty-eight and fifty-two degrees which sets the installed height at 4-3/8" tall with a projection of 3-17/32" wide. Three high points in the design are positioned on the same level plane to assure superior hold down conditions while milling the pattern on an industrial style moulder. We recommend using a felt pressure shoe to eliminate any unsightly burnish mark that may be left on the cyma reversa hold down point in the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
