Crown Moulding 5-5/8" - 8

Crown Moulding 5-5/8" - 8

Crown Moulding 5-5/8" - 8

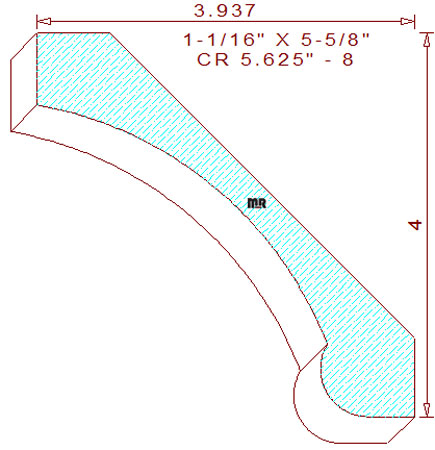

This Crown/Cove Moulding 5-5/8" - 8 measures 5.625" wide by 1.062" thickness with a depth of cut of .532" on the right vertical blades, .565" on the left vertical cutters, and .713" depth of cut on the top horizontal set of moulding knives.

The profile is comprised of a 3-63/64" radius cove in the center, attached to a 49/64" tall vertical fillet on top, the lower section consists of a 1/2" radius quarter round circle tangent off of a 1/2" wide horizontal line at the bottom of the pattern. The spring angles are fixed at forty-five degree, search our bevels category by this degree to find a set of back bevel cutters appropriate for this creative crown/cove moulding design, these specific back bevels set the installed height at 4" tall with a projection of 3-15/16" wide. Two high points in the detail were intentionally positioned on the same level plane, this specialized design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the moulder pressure shoe is properly set parallel to the moulder bed plates.

Need this profile template and a set of custom moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras, there are literally thousands of compelling moulding designs to help match your creative style.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
