Crown 5-11/16" - 2
Crown 5-11/16" - 2

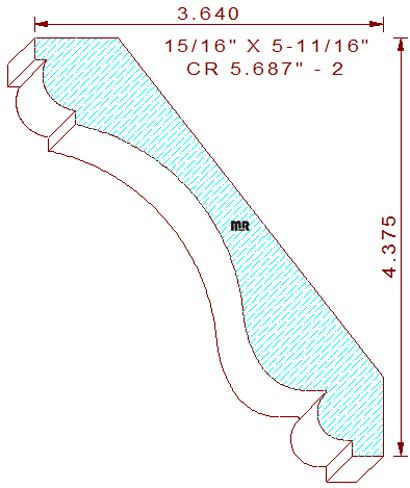

This luxurious 5-11/16" - 2 crown mould measures 5.687" wide by .937" thick, requiring five-quarter lumber to mill this design. The profile is composed of an ovolo positioned in the upper portion attached to cyma recta and a half-round bead with a small stepped fillet on the bottom. When installed, the height becomes 4-3/8" tall with a projection of 3-41/64" wide, with the spring angles fixed at thirty-eight and fifty-two degrees.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.690
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.509
Top Cutter Head
Width: 5.687
Depth of Cut: 0.546
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$377.72
Not Needed
Total:
$720.22
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$403.47
Not Needed
Total:
$764.97
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$442.09
Not Needed
Total:
$832.09
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
