Crown Moulding 5-3/4" - 23

Crown Moulding 5-3/4" - 23

Crown Moulding 5-3/4" - 23

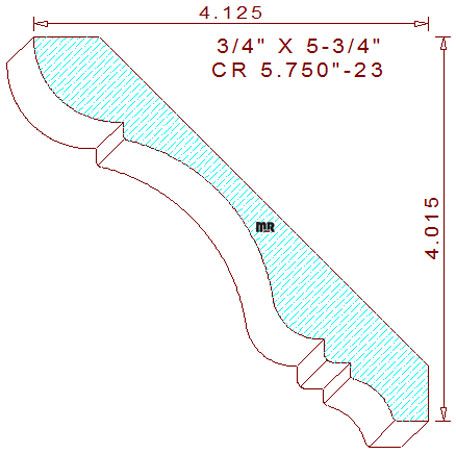

This Sophisticated Crown Moulding 5-3/4" - 23 measures 5.750" wide by .750" thickness. The design consist of a quarter round circle on top, french curve in the middle, stepped fillet, and a cove on the bottom, installed height is 4-1/64" tall, with a projection of 4-1/8" wide, the spring angles are set at forty-five degree. The high points of the design are located on the same plane for excellent hold capabilities while milling, we suggest the use of felt adhered to the moulder pressure shoe to eliminate any burnish marks that may be caused by the pressure element.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
