Crown 5-3/4" - 24
Crown 5-3/4" - 24

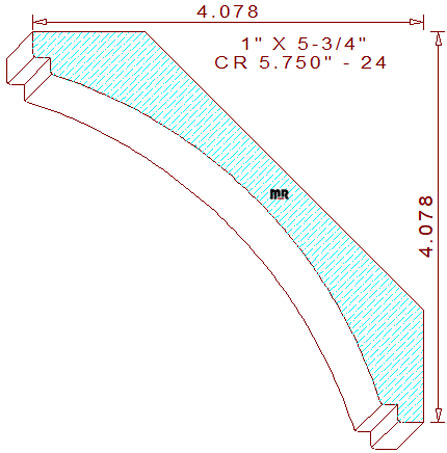

This symmetrical 5-3/4" - 24 crown mould measures 5.767" width by 1.000" thickness, requiring a six-inch-wide blank of five-quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. The balanced terminating profile comprises a 5-5/16" radius cove in the center. The concave semicircle has an 11/64" by 3/16" notch with a 17/64" flat line on the design's top left and bottom right corners. The set spring angles are at forty-five degrees; the dedicated back bevels keep the face sides of the design parallel to the wall and ceiling after installation. These specific angles lock in the positioned height at 4-5/64" tall with a 4-5/64" projection across the top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.828
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.828
Top Cutter Head
Width: 5.750
Depth of Cut: 0.578
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$381.00
Not Needed
Total:
$690.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$407.00
Not Needed
Total:
$735.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$446.00
Not Needed
Total:
$802.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
