Crown Moulding 5-3/4" - 8

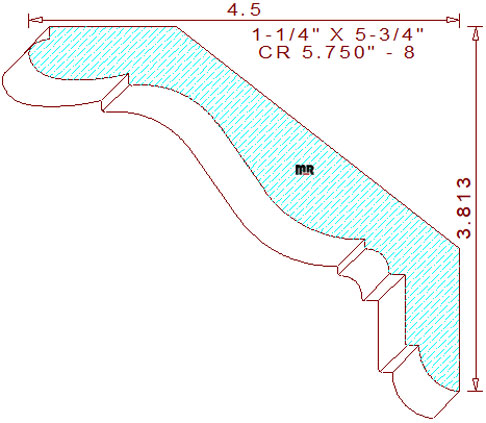

This grandiose crown molding 5-3/4" - 8 measures 5.746" width by 1.250" thickness, enabling the use of a six-inch-wide blank of six-quarter lumber for machining sprung (laying horizontally flat) on an industrial-grade molder. The dignified supporting profile contains a recessed 1/8" tall vertical line segment joined to an elliptical-shaped convex arc, and an additional vertical fillet on the top left. The short line connects to a two tangent radius cyma recta merged with a 13/64" cove flanked by tiny line segments in the center. The remaining portion of the pattern consists of a 3/4" tall by 9/64" wide perpendicular lines, attached to a 15/32" quarter round on the design's bottom right side. The fixed spring angles are set at thirty-eight and fifty-two degrees and are included in the downloadable DXF file below. These particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-13/16" tall with a projection of 4-1/2" across the top.

Custom-made elegance is a phrase used to define the beauty, style, and artisanship of thousands of our molding designs. If you own a recently built house or older dated residence, we have the professional ability, knowledge, and experience to create and produce visually stunning details that will complement the architectural setting of your elegant home and office.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 5.750" / Depth of Cut = .758" (top knives).

Thickness = 1.250" / Depth of Cut = .979" (right blades) & 1.125" (left cutters).
