Crown Moulding 5-15/16" - 2

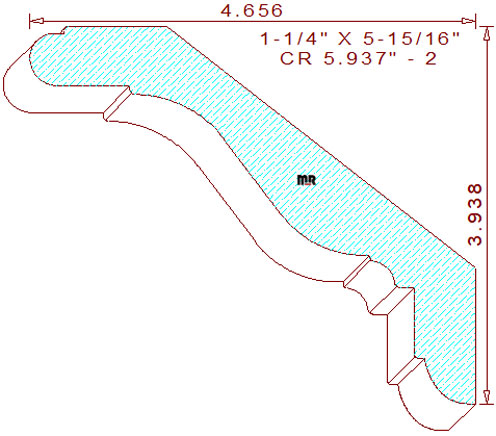

This magnificent crown molding 5-15/16" - 2 measures 5.946" width by 1.250" thickness, necessitating the use of six quarter lumber for machining sprung (laying horizontally flat) on a commercial-grade molder. The complex supporting profile contains a set back 5/64" tall fillet joined to a protruding 1-3/64" bullnose with a 3/32" vertical line on the top left. Attached to a graceful two tangent radius cyma recta with a 1/16" drop-in elevation joined to a 17/64" cove in the center. The lower portion consists of a 3/16" wide by 47/64" tall notch for inserting a piece of 5/8" rope molding, and a 7/64" horizontal fillet with a two tangent radius quarter round convex arc on the bottom right side of the design. The fixed spring angles get set at thirty-eight and fifty-two degrees; these particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed; in addition, they set the oriented height at 3-15/16" tall with a projection of 4-21/32" across the top.

We offer a alternative profile with different inner dimensions that will only require five quarter lumber for your review and consideration, crown moulding 6.000" - 21. Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence we have the ability, knowledge, and experience to create visually stunning molding profiles that will complement the architectural decor of your elegant home or office.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 5.937" / Depth of Cut = .694" (top knives).

Thickness = 1.250" / Depth of Cut = .875" (right blades) & 1.093" (left cutters).
