Crown 5-15/16" - 5
Crown 5-15/16" - 5

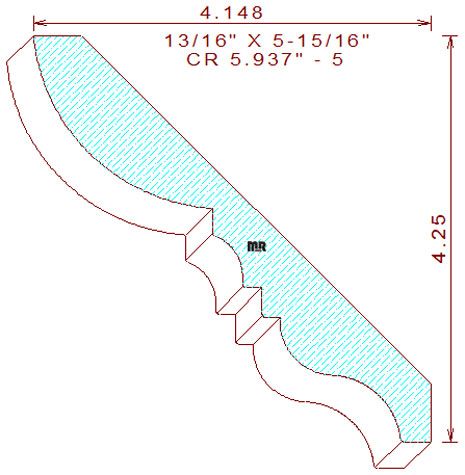

This creative 5-15/16" - 5 crown mould measures 5.937" wide by .812" thick. The design consists of a combination of part bed mould transitioning into a stepped fillet with an attached cyma reversa on the bottom. The spring angles are fixed at forty-five degrees, which sets the installed height at 4-1/4" tall with a projection of 4-5/32" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.426
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.354
Top Cutter Head
Width: 5.937
Depth of Cut: 0.539
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$390.72
Not Needed
Total:
$680.72
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$417.47
Not Needed
Total:
$726.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$457.59
Not Needed
Total:
$795.09
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
