Crown Moulding 5-15/16" - 8

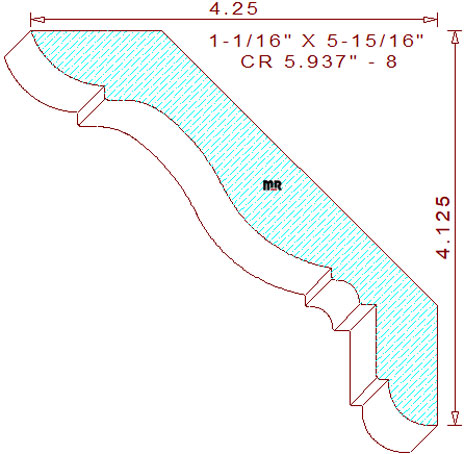

This prestigious crown molding 5-15/16" - 8 measures 5.923" wide by 1.063" thickness requiring the use of five quarter lumber for milling sprung (laying horizontally flat) on an industrial-grade molder. The fancy supporting profile contains a 27/32" quarter round arc joined to a 9/64" vertical line on the top left. This fillet connects to a free-flowing three tangent radius cyma recta and a 7/32" cove flanked by small vertical and horizontal fillets in the center. The lower portion retains a 5/32" wide by 25/32" tall perpendicular notch for a piece of 3/4" rope molding, attached to a 1/8" horizontal line with a 7/16" radius convex arc on the bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 4-1/8" tall with a projection of 4-1/4" across the top.

We're delighted you found a beautiful profile that interests you; consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you are new to the industry, read some of our informational articles, they will help you get started with all the basics. Just a few things we have in common is our passion for excellence and our quest to be paramount craftsmen for all our clients.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 5.937" / Depth of Cut = .624" (top knives).

Thickness = 1.062" / Depth of Cut = .971" (right blades) & .624" (left cutters).
