Crown 6-1/32" - 1

Crown 6-1/32" - 1

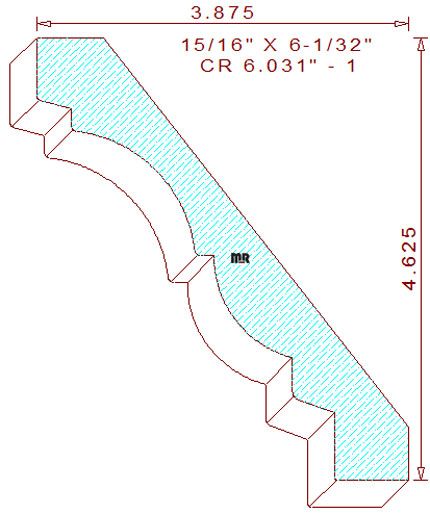

This attractive 6-1/32" - 1 crown mould measures 6.031" wide by .937" thickness. The overall detail is compelling and consists of many beautiful geometrical shapes. When installed, the height becomes 4-5/8" tall with a projection of 3-7/8" wide, the spring angles are set at thirty-eight and fifty-two degrees with two points of the design intentionally place on the same level plane for superior hold down condition while milling the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
