Crown 6-1/32" - 2

Crown 6-1/32" - 2

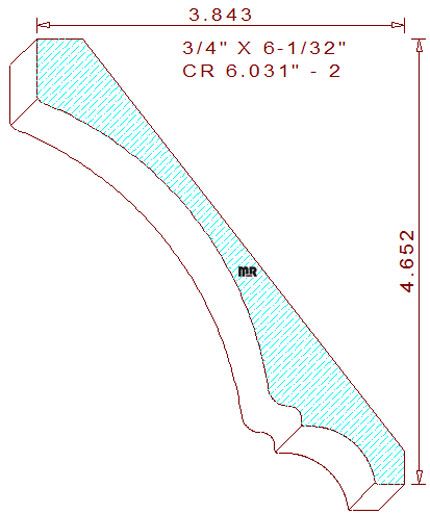

This 6-1/32" - 2 crown mould measures 6.031" wide by .750" thickness. The profile comprises a vertical fillet on top, attached to a large 3.816" cove in the center. The bottom retains a small cove flanked by two fillets and a small cyma recta. When installed, the height becomes 4-21/32" tall with a projection of 3-27/32" wide, the spring angles are fixed at thirty-eight and fifty-two degrees, and two points of the design are intentionally positioned on the same level plane to assure excellent hold down conditions while milling the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
