Crown Moulding 6-1/8" - 2

Crown Moulding 6-1/8" - 2

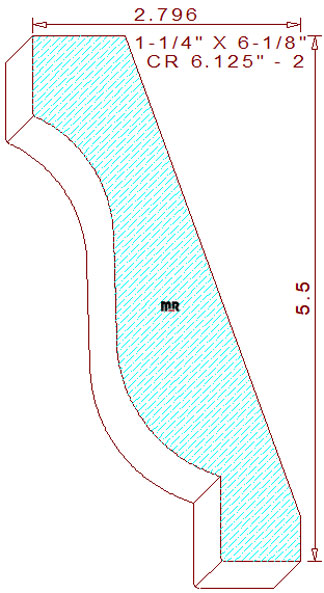

This cyma recta crown moulding 6-1/8" - 2 measures 6.125" wide by 1.250" thickness, necessitating the use of six quarter lumber for milling on an industrial molder. The large terminating profile is comprised of a 27/32" tall vertical line on top, connected to a two tangent radius cyma recta in the center, joined to a 57/64" tall by 53?64" wide right angle at the bottom of the pattern. The spring angles are fixed at twenty and seventy degrees, these angled template designs are included in the downloadable dxf file at the bottom of this page, below the calculator.

Utilize some of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over thirty-five years of experience in woodworking and former Weinig moulder/grinder field service technician. From just an idea in one's mind, to reality in their home, our custom profiles reflect the creative style of your imagination, let us assist you in complementing the architectural decor of any room with one of our attractive molding patterns.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 6.125" / Depth of Cut = 1.187" (top knives.)

Thickness = 1.250" / Depth of Cut = .331" (right blades) & .440" (left cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
