Crown 6-3/8" - 15
Crown 6-3/8" - 15

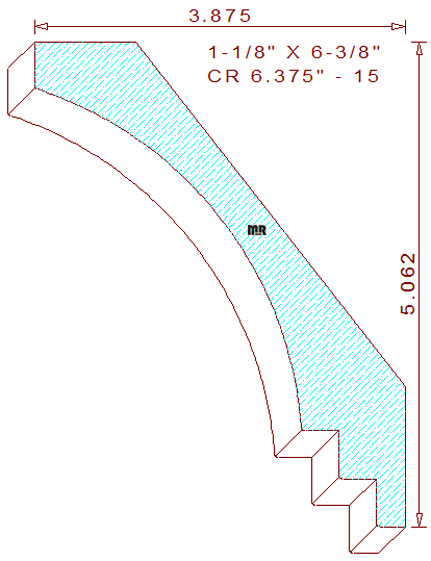

This concave 6-3/8" - 15 crown mould measures 6.375" wide by 1.125" thickness, with a .688" depth of cut on the top horizontal set of cutters.
The beautiful profile is comprised of a 1/2" tall vertical fillet on top, attached to a 4-1/32" radius cavetto in the center that transitions into two notched stepped fillets at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees; these specific bevels set the installed height at 5-1/16" tall, with a 3-7/8" wide projection.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.837
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.900
Top Cutter Head
Width: 6.375
Depth of Cut: 0.688
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$177.00
$177.00
$443.00
Not Needed
Total:
$797.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$186.50
$186.50
$471.50
Not Needed
Total:
$844.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$200.75
$200.75
$514.25
Not Needed
Total:
$915.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
