Crown 6-3/8" - 17
Crown 6-3/8" - 17

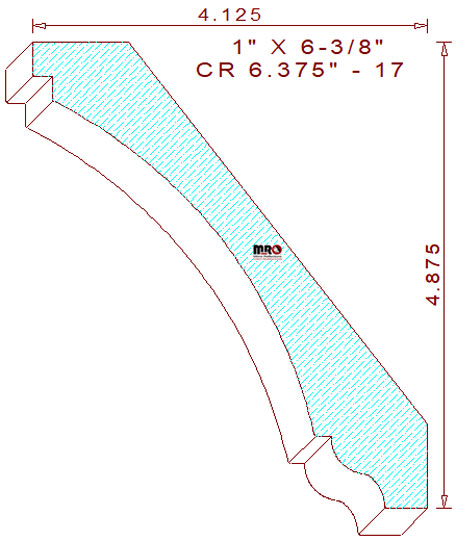

This beautiful 6-3/8" - 17 crown mould measures 6.381" width by 1.000" thickness, necessitating a 6-5/8" wide blank of five-quarter lumber for milling on an industrial moulder. The appealing profile comprises a 3/8" vertical line connected to a ¼" high by 7/32" wide perpendicular notch on the top left. The cut-out attaches to a 5-3/16" concave semicircle in the center, joined to a three tangent radius ogee flanked by a 3/16" broad segment above and a 29/64" horizontal fillet on the design's bottom right corner. The fixed spring angles are at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed, in addition to locking in the height at 4-7/8" tall with a 4-1/8" projection across the top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.793
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.544
Top Cutter Head
Width: 6.375
Depth of Cut: 0.573
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$413.50
Not Needed
Total:
$756.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$442.00
Not Needed
Total:
$803.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$484.75
Not Needed
Total:
$874.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
