Crown 6-1/2" - 6
Crown 6-1/2" - 6

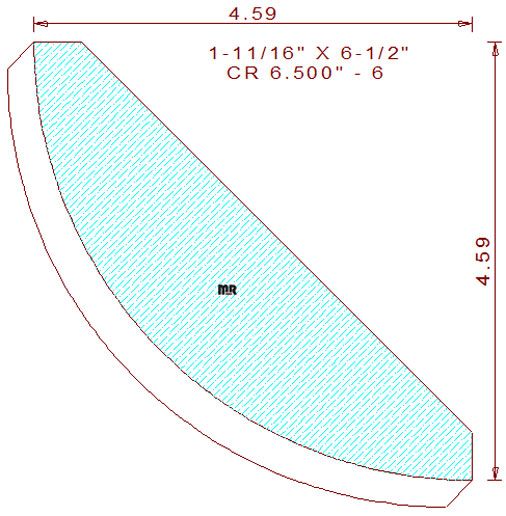

This quarter-round 6-1/2" - 6 crown mould measures 6.500" wide by 1.687" thickness, requiring eight-quarter lumber to mill this pattern on an industrial moulder. The symmetrical supporting profile and shape resemble a quarter circle; when installed, the height and projection are identical at 4-19/32" tall and wide, with the spring angles fixed at forty-five degrees. This design contains a large cutting circle, please check your machine limits.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.687
Depth of Cut: 0.354
Left Cutter Head
Thickness: 1.687
Depth of Cut: 0.354
Top Cutter Head
Width: 6.500
Depth of Cut: 1.407
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$169.72
$126.72
(Template not needed)
$478.00
Not Needed
Total:
$774.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$179.47
$136.47
(Template not needed)
$507.00
Not Needed
Total:
$822.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$194.09
$151.09
(Template not needed)
$550.50
Not Needed
Total:
$895.69
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
