Crown 6-9/16"
Crown 6-9/16"

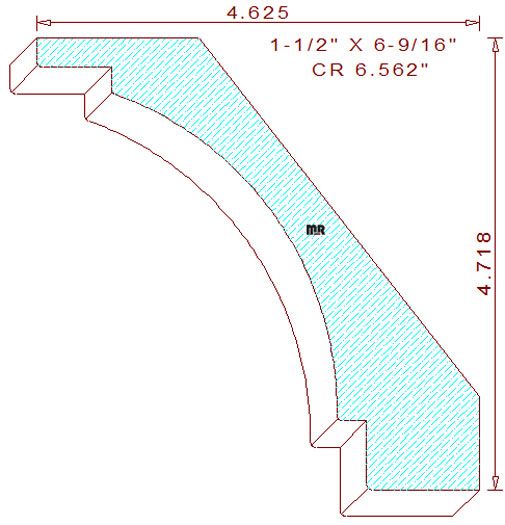

This large 6-9/16" crown mould measures 6.562" wide by 1.500" thickness, requiring eight-quarter lumber to mill this pattern. The design comprises two stepped fillets, one on the top and one on the bottom, separated by a large cavetto in the middle of the pattern. The bottom of the profile is designed to add a 1" thickness by 2" to 4" broad base or edge moulding, enhancing the design significantly when applied. When this profile is installed, the height becomes 4-23/32" tall and a projection of 4-5/8" wide with the spring angles fixed at thirty-eight and fifty-two degrees.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 1.338
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.596
Top Cutter Head
Width: 6.562
Depth of Cut: 1.029
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$166.50
$452.47
Not Needed
Total:
$804.47
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$195.00
$176.00
$481.72
Not Needed
Total:
$852.72
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$209.25
$190.25
$525.59
Not Needed
Total:
$925.09
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
